This vignette demonstrates a modern workflow for processing Sentinel-2 Level-2A data from the EOPF (Earth Observation Processing Framework) STAC API.

The Earth Observation data landscape is rapidly evolving, with EOPF positioning itself as a key component of this transformation. There is a strong industry movement towards adopting Zarr, a modern cloud-native data format designed for efficient storage and access of large multi-dimensional arrays. While the tooling ecosystem around Zarr and EOPF-Zarr specifically is still maturing, this vignette provides a practical example of working with these data formats using the vrtility package.

This vignette also demonstrates contemporary approaches to cloud-masking and image compositing using OmniCloudMask and the geometric median algorithm, respectively.

This example prioritizes data quality and modern processing methods over raw speed, demonstrating how to generate analysis-ready data using contemporary cloud-native workflows.

We also demonstrate a powerful new feature of vrtility: the ability to create derived bands using vrt_derived_block(). This feature enables you to generate spectral indices (such as NDVI and EVI) and other derived metrics directly within the VRT framework. Under the hood, it uses muparser expressions executed through VRT pixel functions, providing efficient computation without requiring intermediate file storage.

Prerequisites

This workflow requires specific system dependencies that may need additional setup:

  1. EOPFZARR GDAL Plugin: You’ll need to build and install the EOPFZARR plugin to read EOPF-Zarr formatted data.

  2. muparser Support: Your GDAL installation must include muparser support for derived band calculations. You can verify this by running: vrtility::check_muparser().

Query the EOPF STAC API

This example demonstrates the standard workflow for discovering and filtering satellite imagery through a STAC (SpatioTemporal Asset Catalog) API. We’ll query the EOPF STAC collection and apply filters to obtain the specific datasets we need.

The process involves: 1. Querying the STAC collection for available imagery 2. Filtering by cloud coverage to ensure data quality 3. Applying coverage filters to guarantee sufficient spatial overlap

In this example, we’re targeting a bounding box around Copenhagen, Denmark, and using stac_coverage_filter() to ensure we only retrieve images with adequate coverage of our area of interest.

library(vrtility)

bbox <- gdalraster::bbox_from_wkt(
  wkt = "POINT (12.56 55.67)",
  extend_x = 0.3,
  extend_y = 0.2
)

te <- bbox_to_projected(bbox)
trs <- attr(te, "wkt")

eopf_s2 <- stac_query(
  bbox = bbox,
  stac_source = "https://stac.core.eopf.eodc.eu/",
  collection = "sentinel-2-l2a",
  start_date = "2025-05-01",
  end_date = "2025-07-30"
)

eopf_filter <- rstac::assets_select(
  eopf_s2,
  asset_names = c("B02_10m", "B03_10m", "B04_10m", "B08_10m")
) |>
  stac_cloud_filter(max_cloud_cover = 30) |>
  stac_coverage_filter(bbox, min_coverage = 0.5)

Download and warp the images

Here we virtually warp the images and then download them to disk using multiple processes within an isolated set of mirai daemons. Note that we call mirai::daemons() within the with() function to ensure that the daemons are properly cleaned up after use.

Critically, we must specify the driver = "EOPFZARR" argument in vrt_collect() because GDAL will, by default, attempt to read the files using the built-in Zarr driver, which does not fully support the EOPF-Zarr format.

Since we want to continue processing this image set, we use the recollect = TRUE argument to ensure that a new VRT collection is returned rather than file paths.

with(mirai::daemons(10), {
  eopf_s2_chgn <- vrt_collect(
    eopf_filter,
    vsi_prefix = "/vsicurl/",
    driver = "EOPFZARR"
  ) |>
    vrt_warp(
      t_srs = trs,
      te = te,
      tr = c(10, 10)
    ) |>
    vrt_compute(
      outfile = fs::file_temp(ext = ".tif"),
      engine = "gdalraster",
      recollect = TRUE
    )
})

Cloud masking

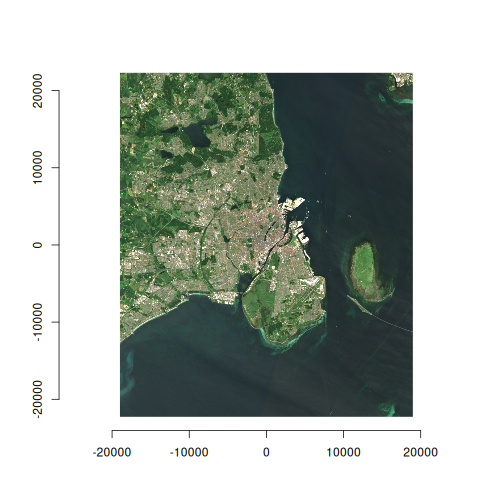

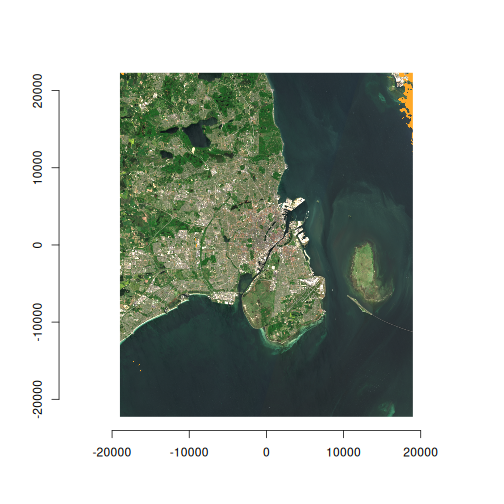

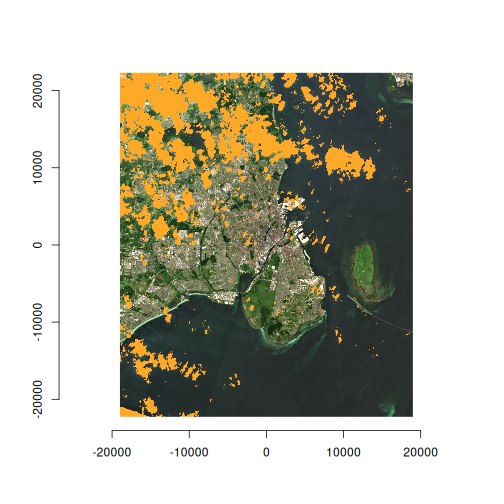

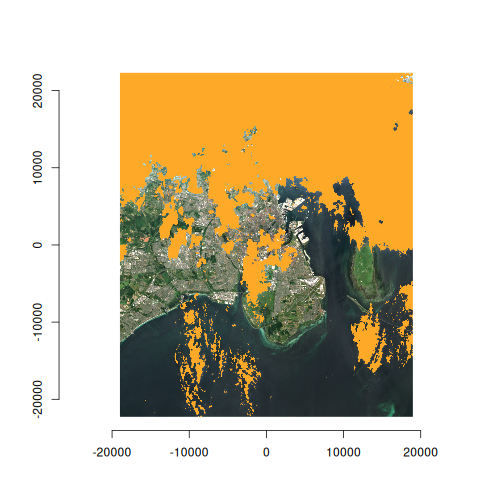

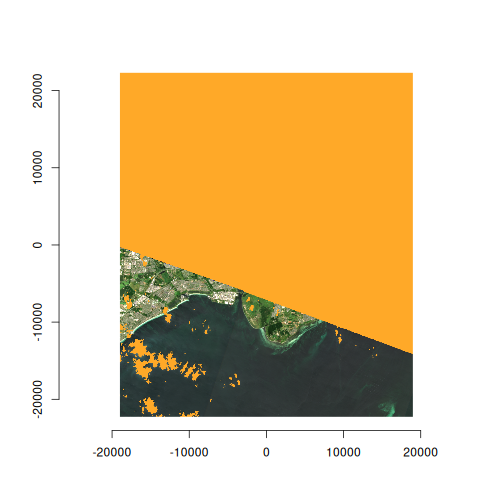

Here we generate an OmniCloudMask for each image in the VRT collection using the red, green, and NIR bands. The cloud mask identifies pixels affected by clouds, cloud shadows, and other atmospheric interference. We then apply this mask to filter out low-quality pixels and compute the results to disk.

Note that we use recollect = TRUE to return a new VRT collection that references the newly created cloud-masked GeoTIFF files, allowing us to continue working with the data in a virtualized format for subsequent processing steps.

eopf_s2_mask <- eopf_s2_chgn |>
  vrt_create_mask(
    inbands = c(red = 3, green = 2, nir = 4),
    maskfun = create_omnicloudmask()
  ) |>
  vrt_set_maskfun(
    mask_band = "omnicloudmask",
    mask_values = 1:3
  ) |>
  vrt_compute(
    outfile = fs::file_temp(ext = ".tif"),
    engine = "warp",
    recollect = TRUE
  )

purrr::walk(
  seq_len(eopf_s2_mask$n_items),
  ~ plot(eopf_s2_mask, item = .x, c(3, 2, 1), na_col = "#ffa928")
)

Geometric median composite

Here we generate a geometric median composite from the cloud-masked images using multiband_reduce() with the geomedian() function. The geometric median is a robust statistical method that effectively reduces noise and preserves spectral characteristics while minimizing the influence of outliers and residual cloud contamination.

We use mirai::daemons() to parallelize the computation across multiple cores, significantly improving processing speed for this computationally intensive operation.

with(mirai::daemons(10), {
  eopf_s2_median <- multiband_reduce(
    eopf_s2_mask,
    reduce_fun = geomedian(),
    outfile = fs::file_temp(ext = ".tif"),
    recollect = TRUE
  )
})

plot(
  eopf_s2_median,
  c(3, 2, 1),
  na_col = "#ffa928",
  pal = grDevices::hcl.colors(10, "YlGnBu")
)

Derived bands

Spectral indices are essential tools in remote sensing for extracting meaningful information from multi-band imagery. Common indices like NDVI (Normalized Difference Vegetation Index), EVI (Enhanced Vegetation Index), and others help identify vegetation health, water content, and other surface characteristics.

The vrtility package provides vrt_derived_block() for efficient creation of these derived bands. This function uses R’s intuitive formula syntax to define band calculations, which are then automatically translated to muparser expressions and executed using VRT pixel functions. This approach provides memory-efficient computation without requiring intermediate file storage.

In this example, we’ll calculate several useful indices and visualize the results:

exptest <- vrt_derived_block(
  eopf_s2_median,
  ndvi ~ (B08_10m - B04_10m) / (B08_10m + B04_10m),
  ndti ~ (B04_10m - B03_10m) / (B04_10m + B03_10m),
  evi ~ 2.5 * (B08_10m - B04_10m) / (B08_10m + 6 * B04_10m - 7.5 * B02_10m + 1),
  vgnirbi ~ (B03_10m - B08_10m) / (B03_10m + B08_10m)
)

print(exptest, pixfun = TRUE)
#> → <VRT Block>
#> VRT XML: [hidden]
#>   run print(x, xml = TRUE) to view
#> Pixel Function:
#> ndvi ~ ((B08_10m * 0.0001) - (B04_10m * 0.0001))/((B08_10m * 0.0001) + (B04_10m * 0.0001))
#> ndti ~ ((B04_10m * 0.0001) - (B03_10m * 0.0001))/((B04_10m * 0.0001) + (B03_10m * 0.0001))
#> evi ~ 2.5 * ((B08_10m * 0.0001) - (B04_10m * 0.0001))/((B08_10m * 0.0001) + 6 * (B04_10m * 0.0001) - 7.5 * (B02_10m * 0.0001) + 1)
#> vgnirbi ~ ((B03_10m * 0.0001) - (B08_10m * 0.0001))/((B03_10m * 0.0001) + (B08_10m * 0.0001))
#>
#>
#>  VRT SRS:
#> PROJCS["unknown",GEOGCS["unknown",DATUM["Unknown based on WGS 84 ellipsoid",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]]],PROJECTION["Lambert_Azimuthal_Equal_Area"],PARAMETER["latitude_of_center",55.67],PARAMETER["longitude_of_center",12.56],PARAMETER["false_easting",0],PARAMETER["false_northing",0],UNIT["metre",1],AXIS["Easting",EAST],AXIS["Northing",NORTH]]
#> Bounding Box: -18980 -22270 18980 22310
#> Pixel res: 10, 10
#> Assets: ndvi, ndti, evi, vgnirbi
#> No Data Value(s): 0, 0, 0, 0
#> Date Time: 2025-06-21 22:21:41 UTC

x <- vrt_compute(
  exptest,
  outfile = fs::file_temp(ext = ".tif")
)

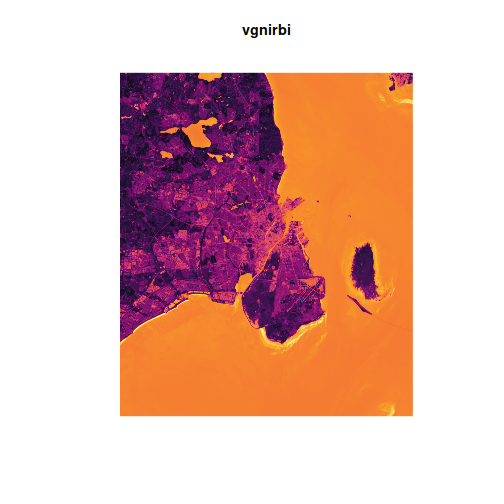

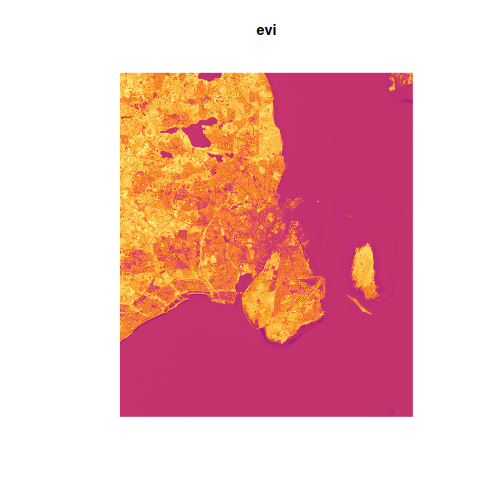

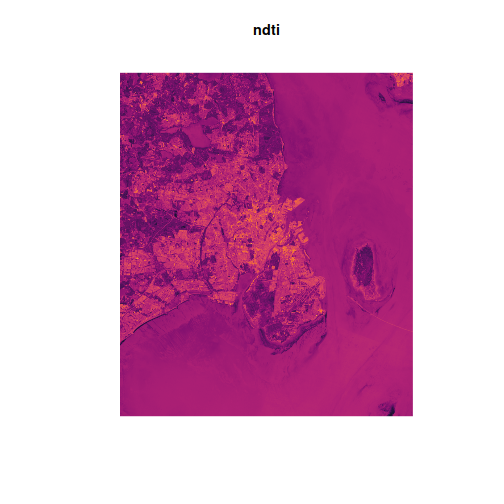

purrr::walk(
  1:4,
  ~ plot_raster_src(
    x,
    band = .x,
    minmax_def = if (.x == 3) c(-1, 1) else NULL,
    pal = grDevices::hcl.colors(10, "Inferno"),
    legend = FALSE,
    axes = FALSE
  )
)
